RTD PT-100 Temperature Sensor

About RTD PT-100 Temperature Sensor

Sense Tech Systems(STS) make RTD PT100 Temperature Sensors

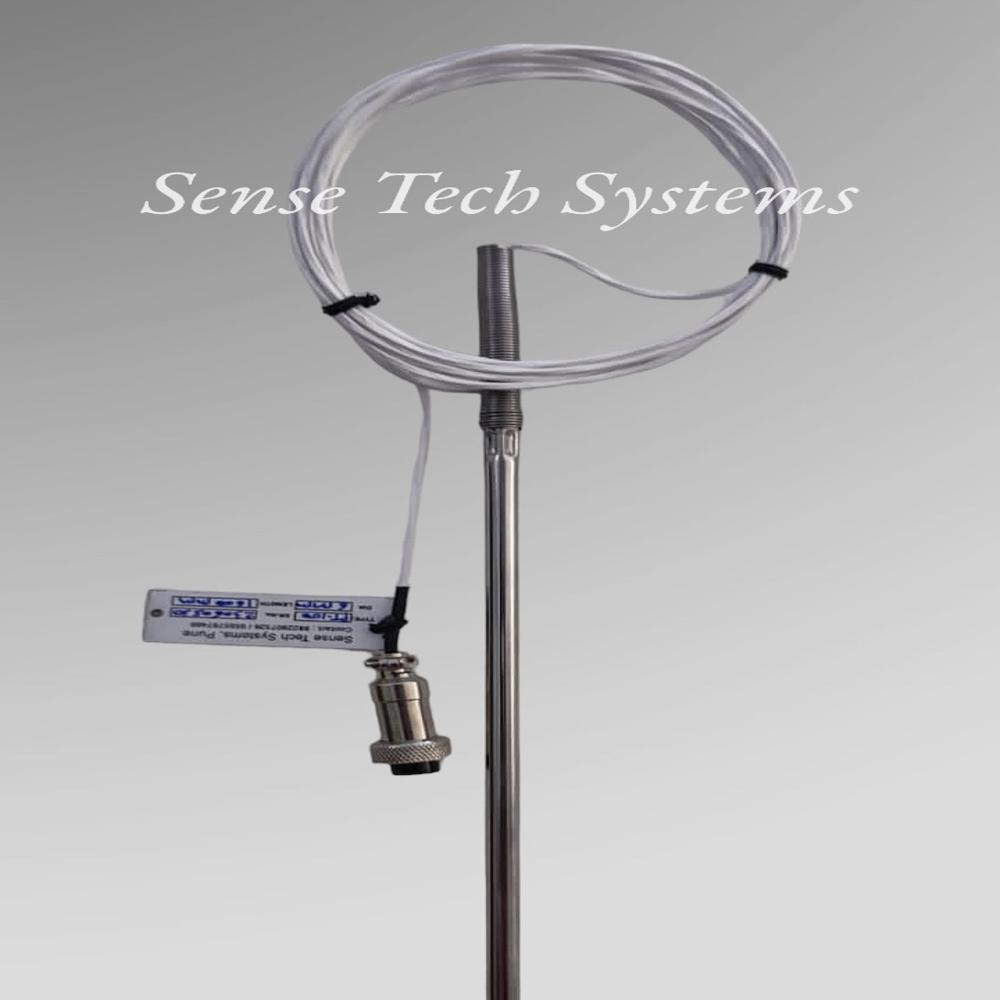

RTD PT-100 Temperature Sensor
The RTD PT-100 Temperature Sensor is a precision temperature measurement device that uses a platinum resistance element with a nominal resistance of 100 ohms at 0 C. It provides highly accurate, stable, and repeatable temperature readings over a wide operating range. Due to its excellent linearity and long-term stability, the PT-100 sensor is widely used in industrial, laboratory, HVAC, and process control applications.

The sensor is typically housed in a durable stainless-steel probe or protective sheath and can be configured in 2-wire, 3-wire, or 4-wire connections to suit different accuracy and installation requirements. It is compatible with standard RTD transmitters, controllers, PLCs, and indicators.

Key Features:

• Platinum PT-100 sensing element (IEC 60751 compliant)

• High accuracy, repeatability, and long-term stability

• Wide temperature measurement range

• Excellent linear response

• Available in multiple probe styles and mounting options

• Supports 2-wire, 3-wire, and 4-wire configurations
